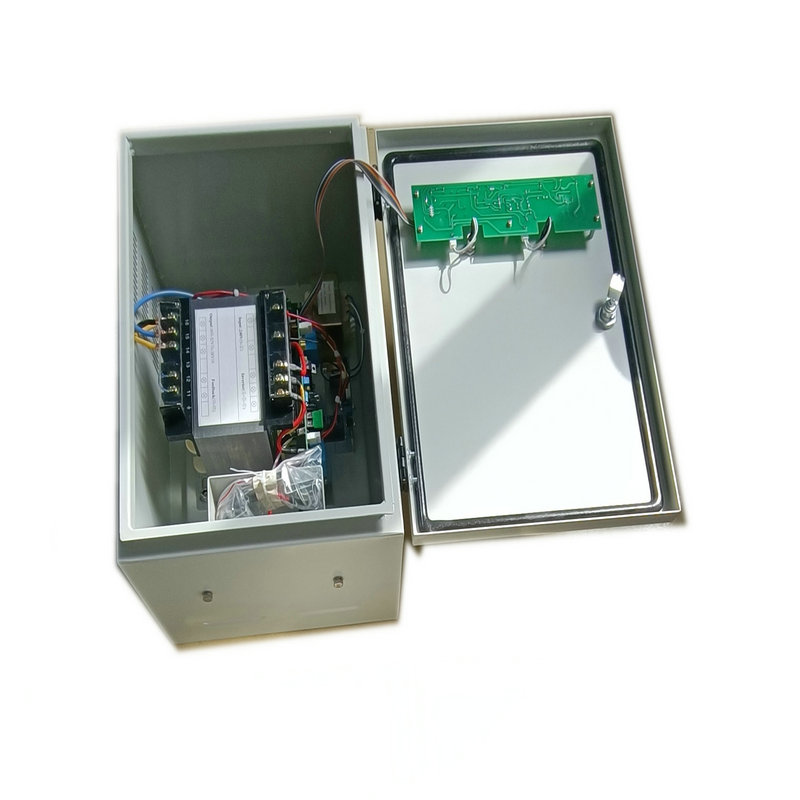

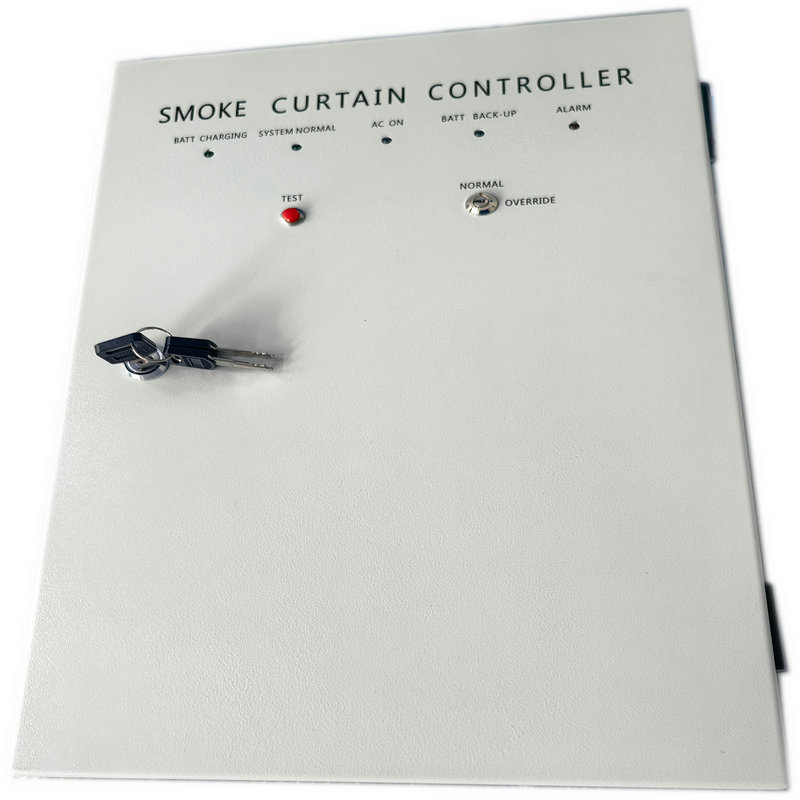

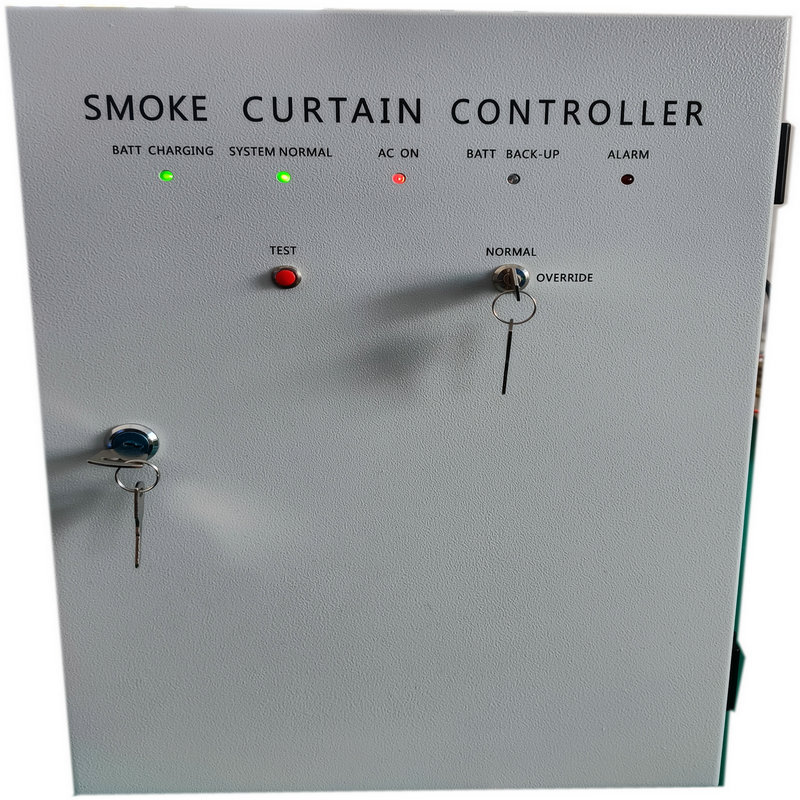

Smoke curtain control panel controls smoke curtain work. When fire signal is received by control panel, smoke curtain motor will power off and curtain falls. Curtain will rise automatically when the fire signal is removed.
Technical specification
Product | Smoke curtain control panel |
Function | Control smoke curtain motor |
Input voltage | 240VAC |
Output voltage | 32VAC or 38VAC |
Max. output current | 20A |
Max. qty. of controlled curtain motors | 10pcs |
Colour | Grey (other colour can be customized) |
Dimension | 520*370*290mm |
Weight | 23kg |
